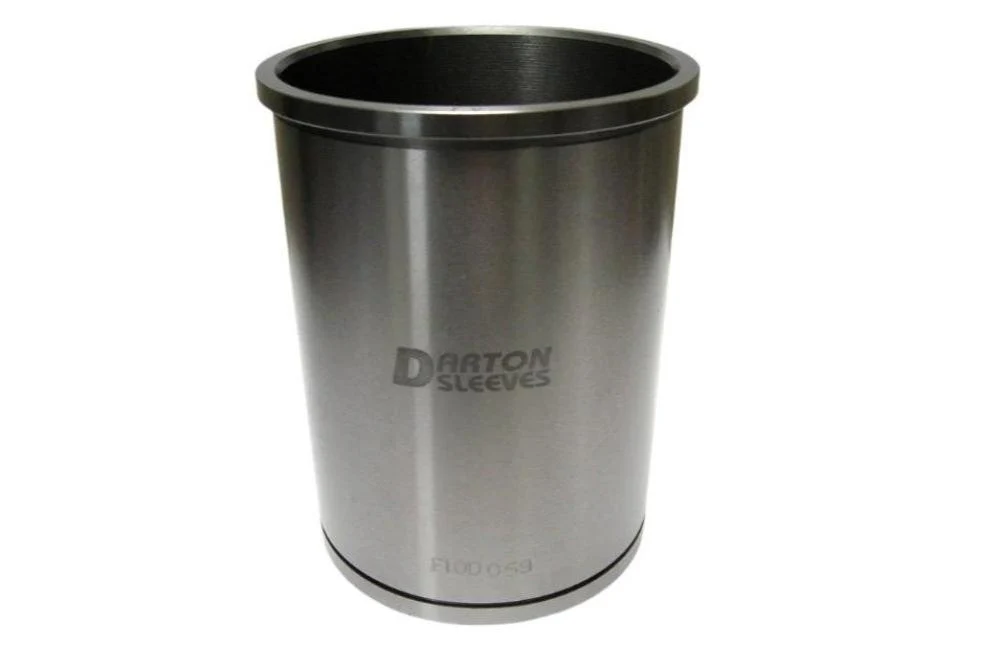

Ductile Iron Flanged Liner

.

Stock expected mid August

94mm bore 4.6 - 4.0 - 4.2 - 3.9V8
(can also be used to convert 3.5V8 to 3.9V8 Rover V8)

Ductile iron flanged liner supplied with o ring and fitting instructions. For those who prefer to have their own block casting reworked at a local machine shop.

Heavy duty Ductile iron flanged liner (top hat flanged liner) - Ductile iron is an extremely heavy duty material which is used in high performance race engines including top fuel dragsters. This extremely robust material offers significantly higher strength in the critical flange area of the liner. Our design is unique in that it also incorporates a seal at the bottom of the liner.

This type of liner is manufactured by Darton Sleeves in the USA exclusively for Turner Engineering and is not available elsewhere. Minimum recommended 4 liners as fitting 1 liner only will distort the adjacent cylinders.

Fits: 3.9 - 4.0 - 4.2 - 4.6V8
Can also be used to convert 3.5V8 to 3.9V8

NOTE: It is the responsiblity of the machine shop fitting these liners to ensure correct interference fit and piston clearance
